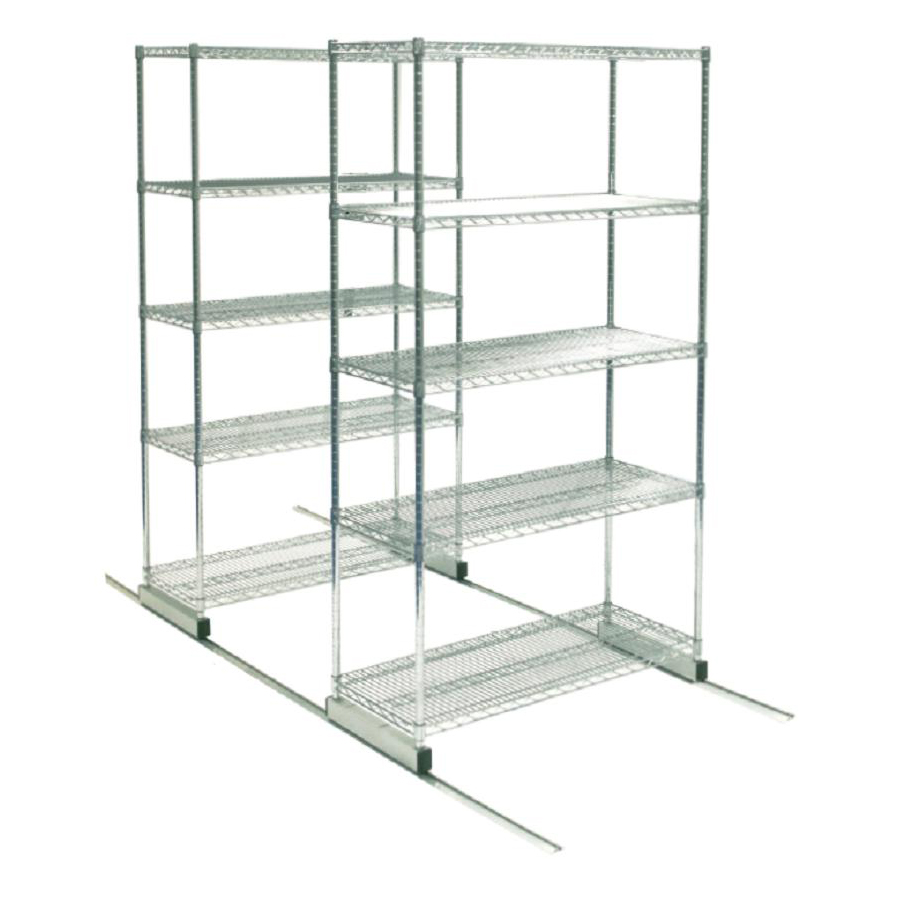

Chrome High Density Shelving

KTW’s Medical High Density moveable aisle system increases the storage capacity of a given area by 40-50%.  Our versatile system allows for more storage units to be installed in a defined space, preventing the need for expansion or renovation of existing storage areas.

Category: Tags: , ,

Features:

  • High Density Shelving uses a skate concept, utilizing the structural integrity of the Storage Systems shelving units.
  • Floor tracks provide a smooth, level surface when inconsistent or uneven floor conditions exist.
  • Industrial-type bearings allow loaded units( up to 1,500lbs) to glide effortlessly over the track.
  • NSF approved

Components:

  • Skate
  • Skate Roller
  • End Stop

Aluminum Skates:

#Part #Dimensions
SK18TS18" x 2" x 2"
SK21TS21" x 2" x 2"
SK24TS24" x 2" x 2"
SK30TS30" x 2" x 2"

Additional Components:

HD Shelving Track

VTRACK – V-Groove Track – is fabricated from extruded, anodized aluminum and stainless steel, offering corrosion free contrustion. Track is sold on a per inch basis to maximize available storage areas.

ESTOP – End Stop Kit – Kit includes 2 ends and 1 drill bit. Positioned at both ends of each track. Serves the dual purpose of stopping the skate/shelving unit and is also the anchor point for the track run.

WINGKIT – Includes 1/4″ thick plates and all mounting hardware. Allows for the joining of two units, side by side, sharing one track.
