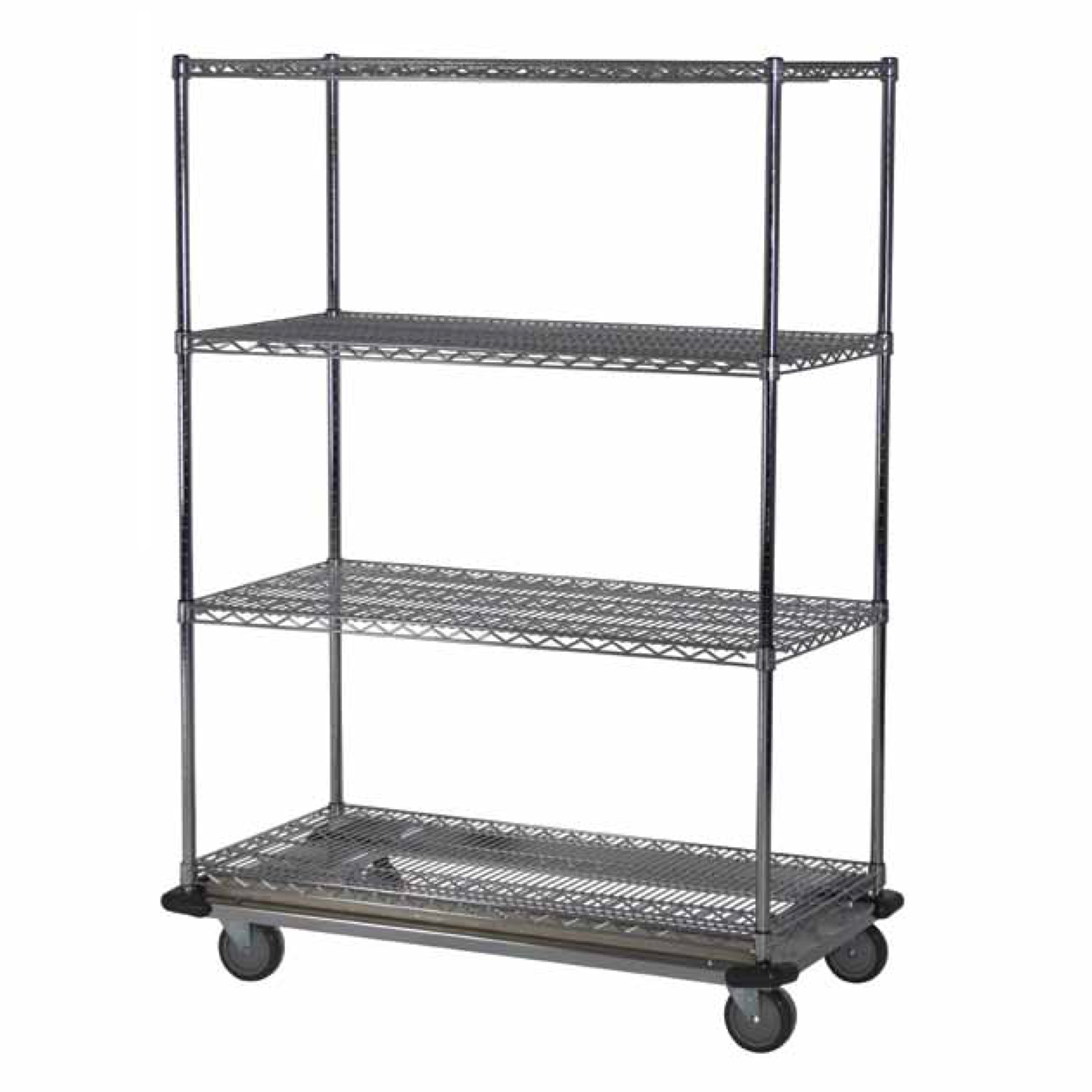

Dolly Base Mobile Chrome Shelving

Standard units include:

  • 4 or 5 wire shelves and split sleeve adapters.
  • 4 posts – available in 63″ or 74″.
  • Dolly Base for added strength and stability (includes corner bumpers).
  • 5″ non-marking swivel caster, 2 with total lock brakes (larger casters available).
  • Load capacity up to 2,000lbs.
Category: Tags: , , ,

4 Shelf:

#Part #Dimensions W x D x HWeight (lbs.)
MD836CH18" x 36" x 70"73
MD856CH18" x 48" x 70"85
MD866CH18" x 60" x 70"106
MD436CH24" x 36" x 70"88
MD456CH24" x 48" x 70"104
MD466CH24" x 60" x 70"126
MD837CH18" x 36" x 81"85
MD857CH18" x 48" x 81"100
MD867CH18" x 60" x 81"126
MD437CH24" x 36" x 81"104
MD457CH24" x 48" x 81"123
MD467CH24" x 60" x 81"150

5 Shelf:

#Part #Dimensions W x D x HWeight (lbs.)
MD836CH-518" x 36" x 70"83
MD856CH-518" x 48" x 70"97
MD866CH-518" x 60" x 70"123
MD436CH-524" x 36" x 70"101
MD456CH-524" x 48" x 70"120
MD466CH-524" x 60" x 70"147
MD835CH18" x 36" x 81"85
MD855CH18" x 48" x 81"100
MD865CH18" x 60" x 81"126
MD435CH24" x 36" x 81"104
MD455CH24" x 48" x 81"123
MD465CH24" x 60" x 81"150
