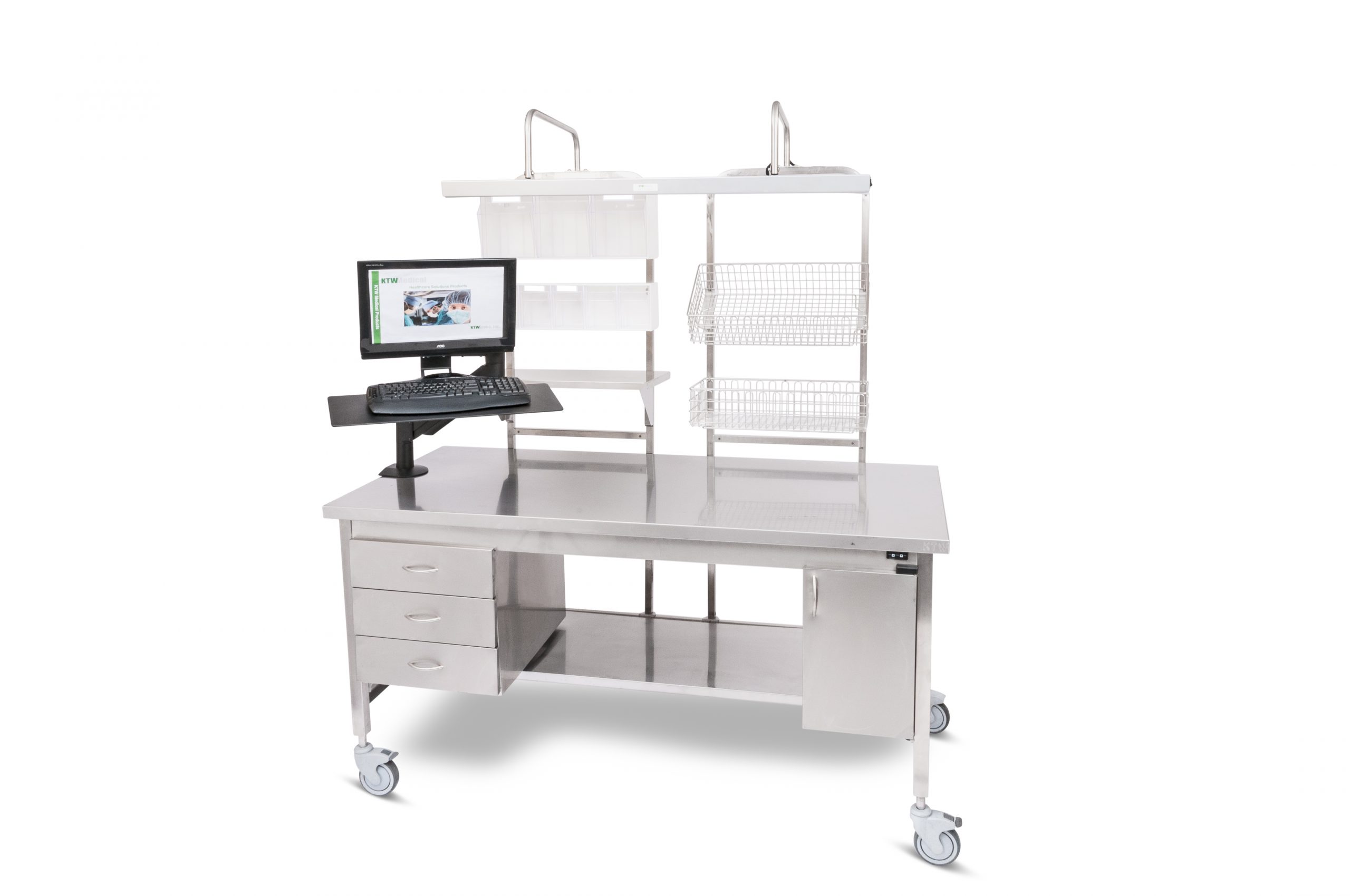

Instrument Prep & Pack Tables

Specifications:

  • Manufactured from 304 #4 18/10 Stainless steel
  • Stationary or hydraulic height adjustment
  • Hydraulic height adjustment from 33.5” to 45.25”
  • Electrical 120 volts, 60 cycle, 1 phase with 72” cord
  • Reinforced worktop
  • Optional casters with locking brakes
  • Standard and custom size table lengths available
  • Available in 31.5” or 35” depths
  • Optional Manual Height adjustment or Stationary

Stationary Workstations:

#Model (30" Depth)Model (35" Depth)30" External Dimensions W x D x H35" External Dimensions W x D x H
191AX-ELEC-140191AX-ELEC-140-3555 .1” x 31.5” x 33.5” to 45.3” (1400mm x 800mm x 850 to 1150mm)55 .1” x 36” x 33.5” to 45.3” (1400mm x 900mm x 850 to 1150mm)
191AX-ELEC-160191AX-ELEC-160-3562.9” x 31.5” x 33.5” to 45.3” (1600mm x 800mm x 850 to 1150mm)62.9” x 36” x 33.5” to 45.3” (1600mm x 900mm x 850 to 1150mm)
191AX-ELEC-180191AX-ELEC-180-3570.8” x 31.5” x 33.5” to 45.3” (1800mm x 800mm x 850 to 1150mm)70.8” x 36” x 33.5” to 45.3” (1800mm x 900mm x 850 to 1150mm)
191AX-ELEC-200191AX-ELEC-200-3578.7” x 31.5” x 33.5” to 45.3” (2000mm x 800mm x 850 to 1150mm)78.7” x 36” x 33.5” to 45.3” (2000mm x 900mm x 850 to 1150mm)
191AX-ELEC-220191AX-ELEC-220-3586.6” x 31.5” x 33.5” to 45.3” (2200mm x 800mm x 850 to 1150mm)86.6” x 36” x 33.5” to 45.3” (2200mm x 900mm x 850 to 1150mm)

Mobile Workstations:

#Model (30" Depth)Model (35" Depth)30" External Dimensions W x D x H35" External Dimensions W x D x H
191AXCR-ELEC-140191AXCR-ELEC-140-3555 .1” x 31.5” x 33.5” to 45.3” (1400mm x 800mm x 850 to 1150mm)55 .1” x 36” x 33.5” to 45.3” (1400mm x 900mm x 850 to 1150mm)
191AXCR-ELEC-160191AXCR-ELEC-160-3562.9” x 31.5” x 33.5” to 45.3” (1600mm x 800mm x 850 to 1150mm)62.9” x 36” x 33.5” to 45.3” (1600mm x 900mm x 850 to 1150mm)
191AXCR-ELEC-180191AXCR-ELEC-180-3570.8” x 31.5” x 33.5” to 45.3” (1800mm x 800mm x 850 to 1150mm)70.8” x 36” x 33.5” to 45.3” (1800mm x 900mm x 850 to 1150mm)
191AXCR-ELEC-200191AXCR-ELEC-200-3578.7” x 31.5” x 33.5” to 45.3” (2000mm x 800mm x 850 to 1150mm)78.7” x 36” x 33.5” to 45.3” (2000mm x 900mm x 850 to 1150mm)
191AXCR-ELEC-220191AXCR-ELEC-220-3586.6” x 31.5” x 33.5” to 45.3” (2200mm x 800mm x 850 to 1150mm)86.6” x 36” x 33.5” to 45.3” (2200mm x 900mm x 850 to 1150mm)



Rear Accessory Rails:

#ModelVersionExternal Dimensions W x D x HImage
MF-191Single20.8" x 1.6" x 56.10" (555mm x 40mm x 1447mm)
MF-191-2Double2 @ 20.8" x 1.6" x 56.10" (555mm x 40mm x 1447mm)

Lower Storage Shelves:

#ModelShelf TypeForExternal Dimensions W x D
LS-14/16-5Solid SS191AX-140, 191AX-16056" x 20” (1400 x 500 mm)
LS-18/22-5Solid SS191AX-180, 191AX-200, 191AX-22071" x 20" (1800 x 500 mm)

Rear Rail Accessories:

#ModelDescription

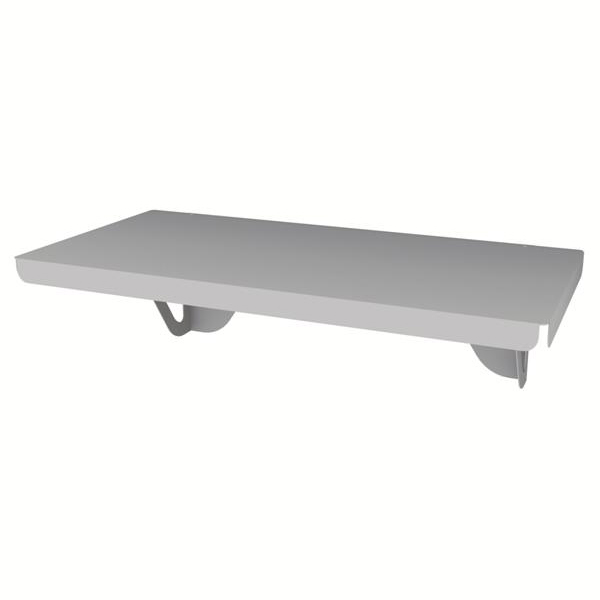

AX-11Universal SS shelf - 27.4” x 13.75” (695 x 350mm)
AX-11-2Double Universal SS shelf - 54.7 x 17.75” (1390 x 450mm)

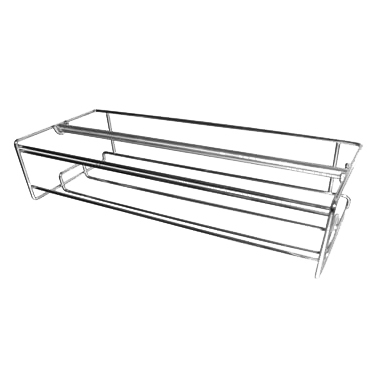

7500552Spool roller shelf for rolls up to 9.5” (240mm)

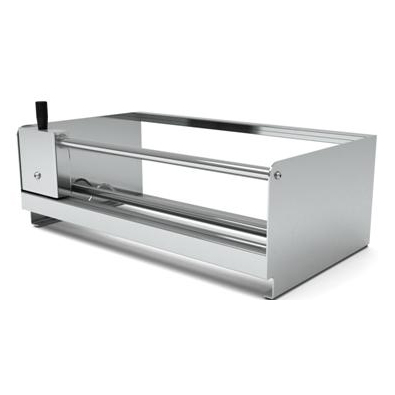

CUT-191Spool roller shelf 241/2 W -c/w cutter for rolls up to 12” (300mm)

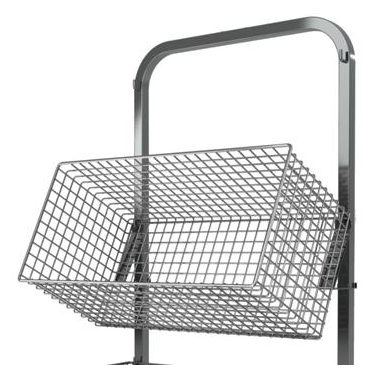

CE-13Wire SS storage baskets 22 .6” x 10.8 x 5 .1” H (574x274x130mm)
CE-15Wire SS storage baskets 23.6” x 10.8 x 5 .9” H (599x274x150mm)
CE-26Wire SS storage baskets 22 .6” x 10.8 x 10.3” H (574x274x262mm)
CE-26WWire SS storage baskets (with cut out front) 22 .6” x 10.8 x 5 .1” H
AX-16Stainless steel angle brackets (pair) to slope baskets on back rails

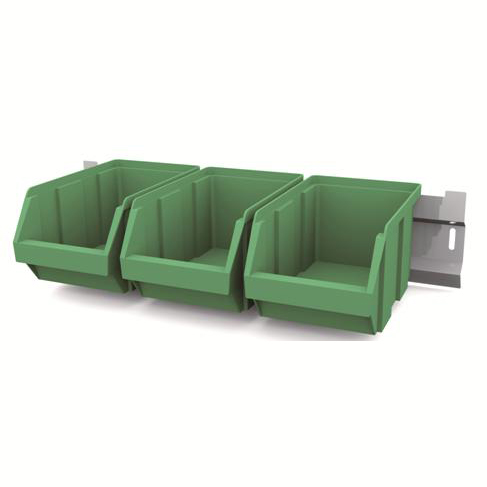

AX-10Universal holder for plastic container PSCB-3, 4 or 5

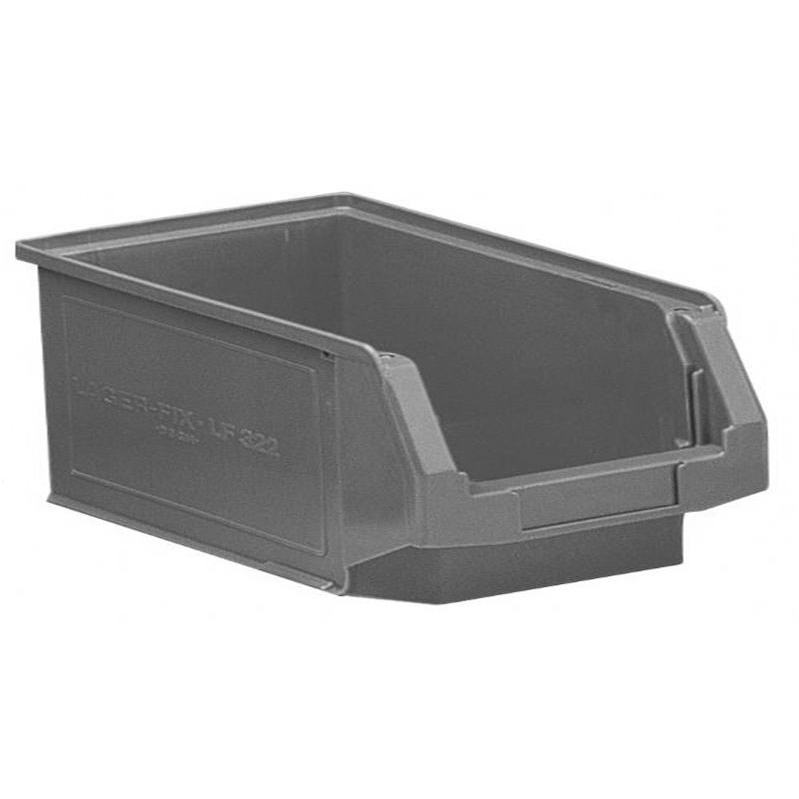

PSCB-3Plastic storage containers, #3- 8.25” x 13.75” x 7.75” (210 x 350 x 200mm)
PSCB-4Plastic storage containers, #4 - 5.9’ x 9.06” x 4.75” (150 x 230 x 125mm)
PSCB-5Plastic storage containers, #5 - 4” x 6.6” x 3” (100 x 170 x 75mm)
AX-03Dispenser rail c/w 3 Tilt Bins

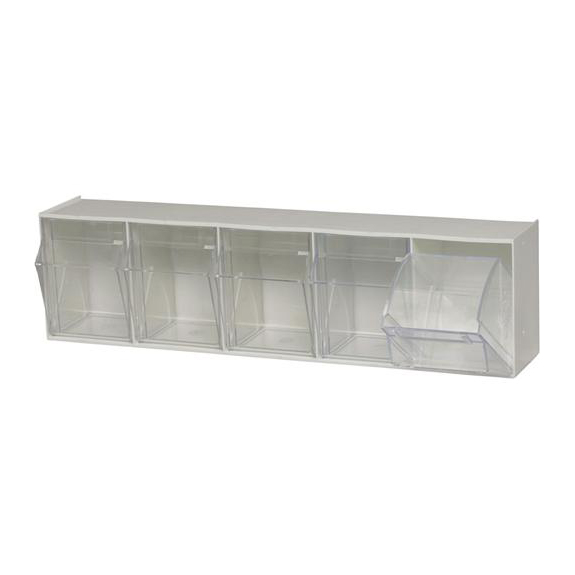

AX-05Dispenser rail c/w 5 Tilt Bins

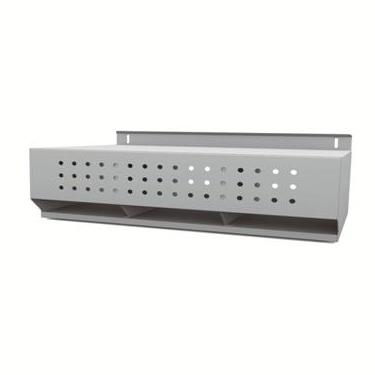

AX-02Dispenser for Disposable Gloves
LGH-191-110Tilting Overhead Task Light for Double Rail Tables 1400 & 1600
LGH-191-135Tilting Overhead Task Light for Double Rail Tables 1800 to 2200

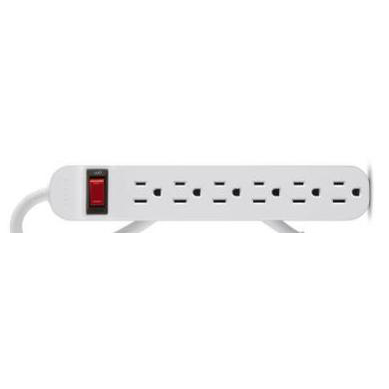

PSBAR-6Electric power bar c/w surge protector, 125 v, 60 Hz, 15 amps, on/off switch, table mounted
7500552
7500552
AX-02
AX-02
AX-05
AX-05
AX-10
AX-10
AX-11
AX-11
AX-16
AX-16
CE
CE
CUT-191
CUT-191
LGH-191
LGH-191
PSBAR-6
PSBAR-6
PSCB
PSCB

Prep & Pack Table Accessories:

#ModelDescription

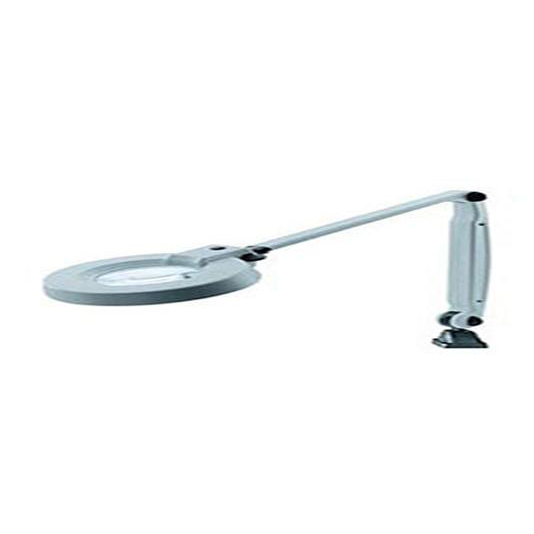

SARM-LAMPTable mounted swivel arm magnifier c/w lamp, 120V c/w cord & plug, on/off switch

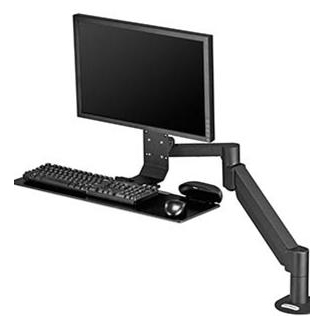

HTSR-2718LED swivel table mounted monitor arms c/w keyboard holder & space for mouse

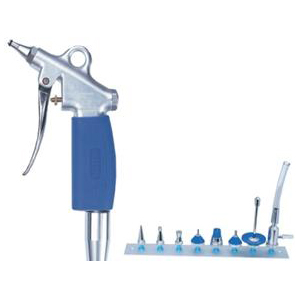

SSGUN-PHSelecta air gun, hand trigger operated cleaning , 1.5 meter PVC tubing, mounted on rear accessory rail with hook, (air line by others)
SSGUN-ACCAccessories for Selecta Spray Gun, 8 tip set c/w mounting bracket
DR-191Single task drawer
DR-191-2Double task drawer
DR-191-3Triple task drawer
DR-LOCTask drawer keyed alike drawer locks, (per drawer)
VP-191CPU cabinet SS with vented door

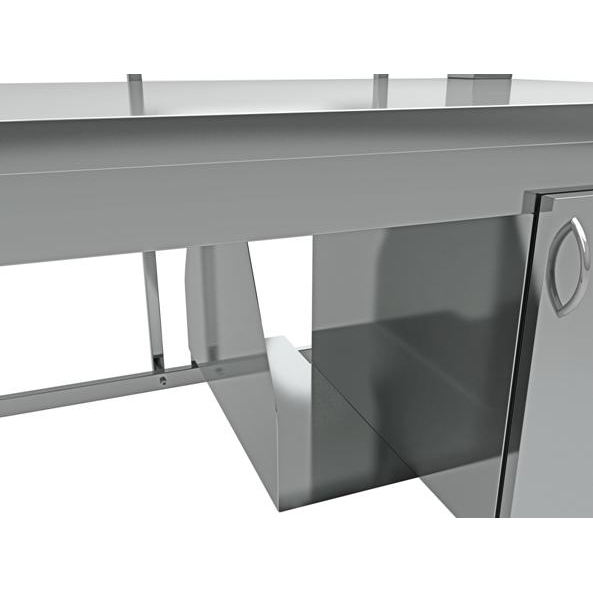

PC-191CPU open housing
DR-191
DR-191
HTRS-2718
HTRS-2718
PC-191
PC-191
SARM-LAMP
SARM-LAMP
SSGUN
SSGUN
