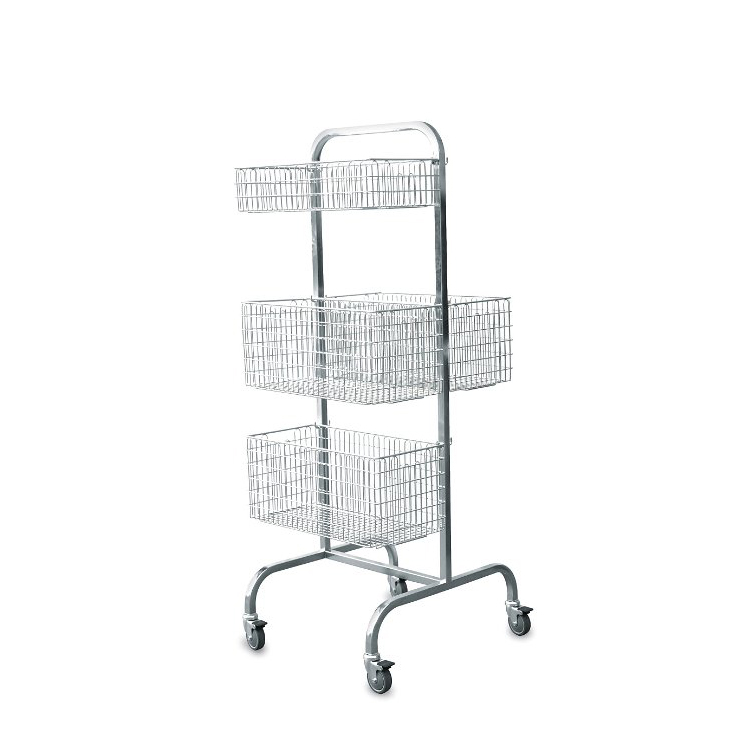

OR Supply Carts

KTW’s OR supply carts can be loaded from 1, 2 or 3 sides depending on the model selected. Fully modular in    design they can be customized for a variety of specialties such as urology, visceral, anesthesia, and operating    theatres. All supply carts are equipped with pairs of hooks/pins spaced at different intervals depending on the cart specified to accommodate different sizes of sterile consumable storage baskets. Single supply carts have 3 pairs of hooks/pins, double supply carts hold from 6 to 8 baskets on 2 sides. The DF2M4 supply carts can be loaded from both sides with 4 pairs on hooks/pins on each side, while the center of the cart holds up to 3 -1/2 StU baskets or containers on “L” shaped slides on 4.3” centers (110mm). Casters: carts have 3” (75mm) all swivel casters, all carts have 2 casters with full locking brakes.

Category: Tags: , ,
#ModelSets of HooksSingle/DoubleCapacity ofHookDimensions W x D x H
MF33Single315.75” (400mm)21.8” x 16.9” x 57.5” (555mm x 430mm x 1460mm)
DF32 x 3Double615 75” (400mm)21.8” x 24.8” x 61.4” (555mm x 630mm x 1560mm)
DF42 x 4Double812.6” (320mm)21.8” x 24.8” x 63.8” (555mm x 630mm x 1620mm)
DF2M42 x 4Double8 + 3 Containers12.6” (320mm)39.7” x 21.8” x 63.8” (1000mm x 555mm x 1620mm)
#AccessoriesDescription (For Hook Carts Only)
DIN-RN“L” Support rails for baskets 3.3” x 23.7” x 1.6” (84 x 600 x 41mm)
CE13SS wire storage baskets 22.6” x 18.8” x 5.1”h (575x 275 x 130mm)
CE26SS wire storage baskets 22.6” x 18.8” x 10.2”h (575x 275 x 260mm)
CE26WSS wire storage baskets, open front 22.6” x 18.8” x 10.2”h (575x 275 x 260mm)
